The benchmarks of some disk.

BenchMarks

Device 顺序读Q8T1 顺序写Q8T1 顺序读Q1T1 顺序写Q1T1 随机读Q32T16 随机写Q32T16 随机读Q1T1 随机写Q1T1
WD SN740 3567.90 3413.15 2523.52 2553.74 3058.50 3314.91 84.36 239.69
WD SN750 3374.62 2709.37 2088.82 1739. 84 1705.58 854.35 48.50 159.79
Optane M10 941.21 180.48 859.87 176.80 928.51 183.75 98.13 43.55
DT01ACA050 196.87 183.71 197.17 178.09 1.54 1.18 0.63 0.63
WD5000LPCX 112.40 112.42 111.77 109.28 0.97 1.34 0.42 1.25
WD5000LPLX 149.53 148.27 154.13 146.37 1.75 1.74 0.67 1.76
KIOXIA-U365 208.18 19.25 219.84 24.52 13.80 0.00 12.32 0.00
KIOXIA-U301 131.43 7.97 131.60 7.32 11.91 0.03 10.97 0.00
KDATA 81.01 44.14 81.15 44.84 9.63 0.06 7.28 0.23

NVME Device

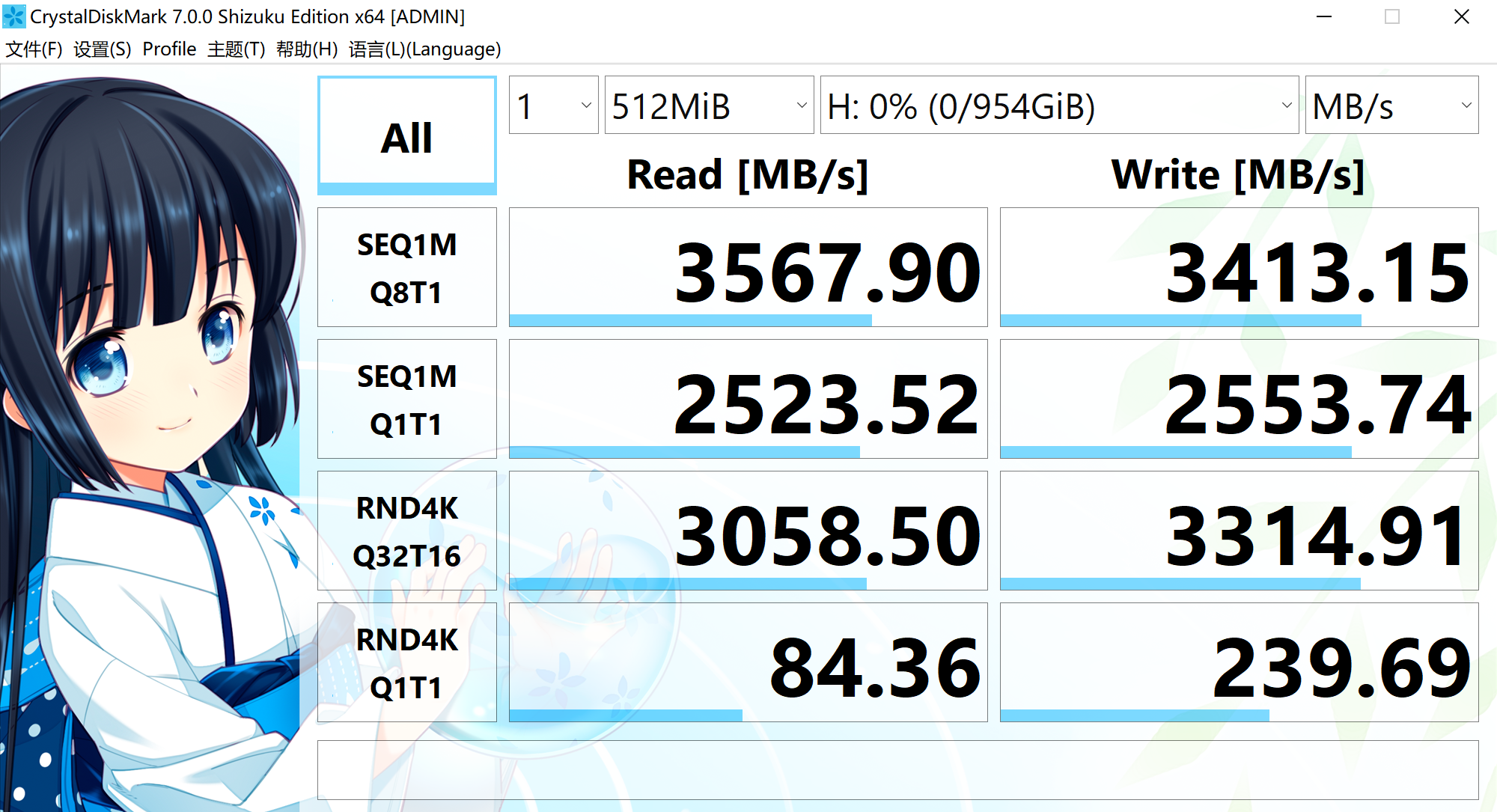

WD SN740 NVMe SSDWD SN740 NVMe SSD

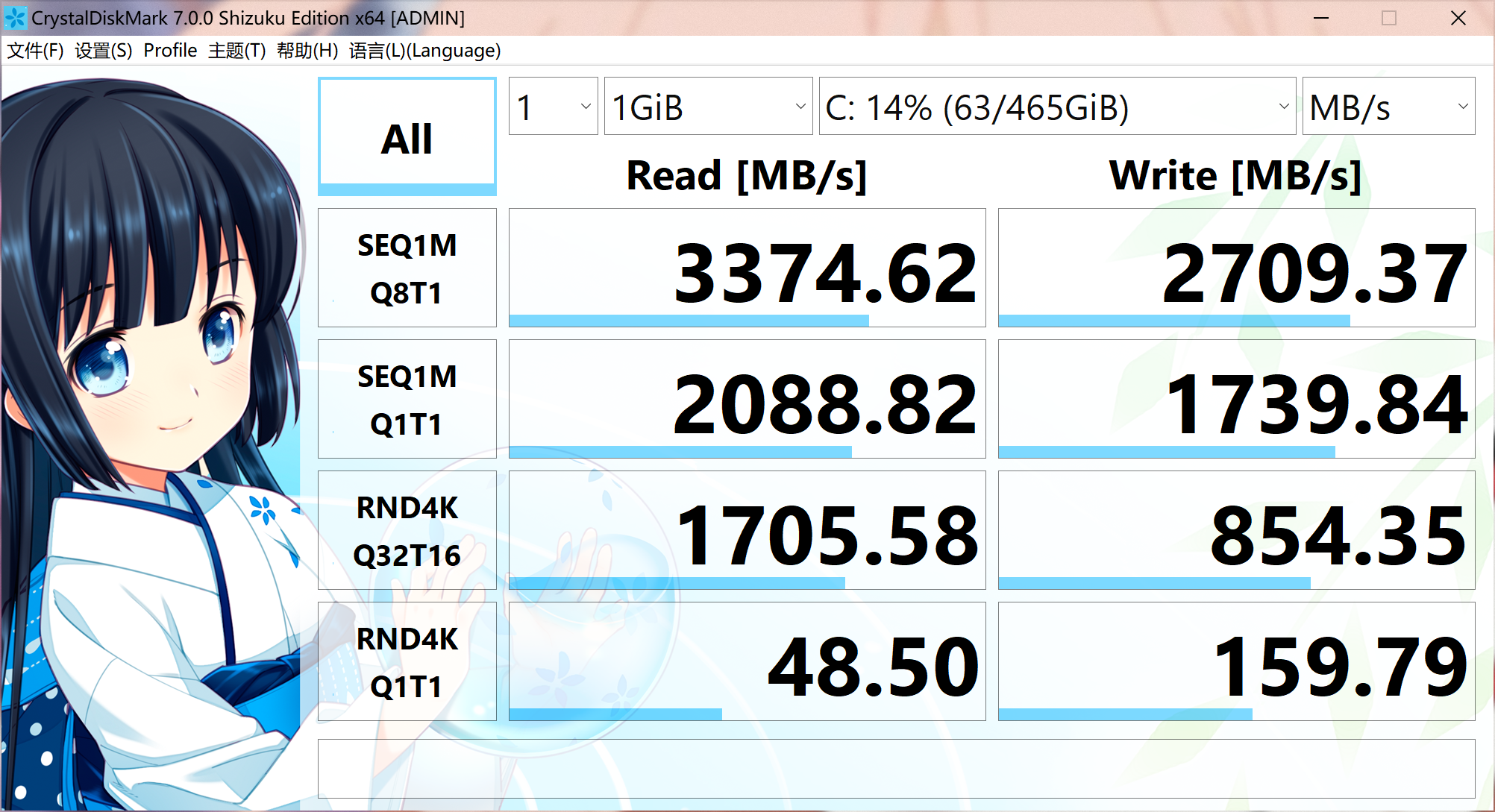

WD BLACK SN750 NVMe SSDWD BLACK SN750 NVMe SSD
Intel Optane Memory M10.jpgIntel Optane Memory M10.jpg

Sata Device

Toshiba DT01ACA050Toshiba DT01ACA050
WD5000LPCXWD5000LPCX
WD5000LPLXWD5000LPLX

Portable Device

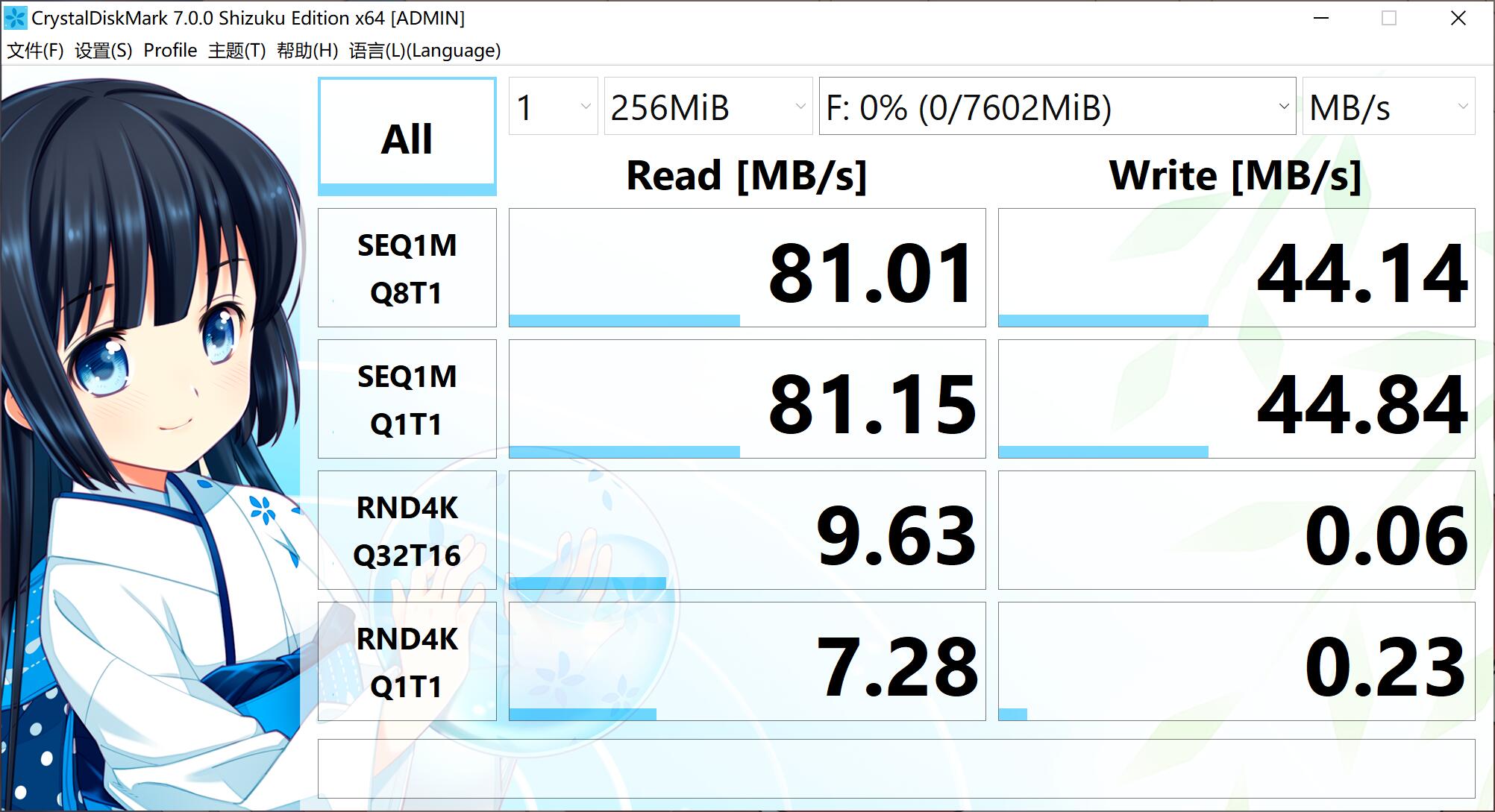

KDATAKDATA

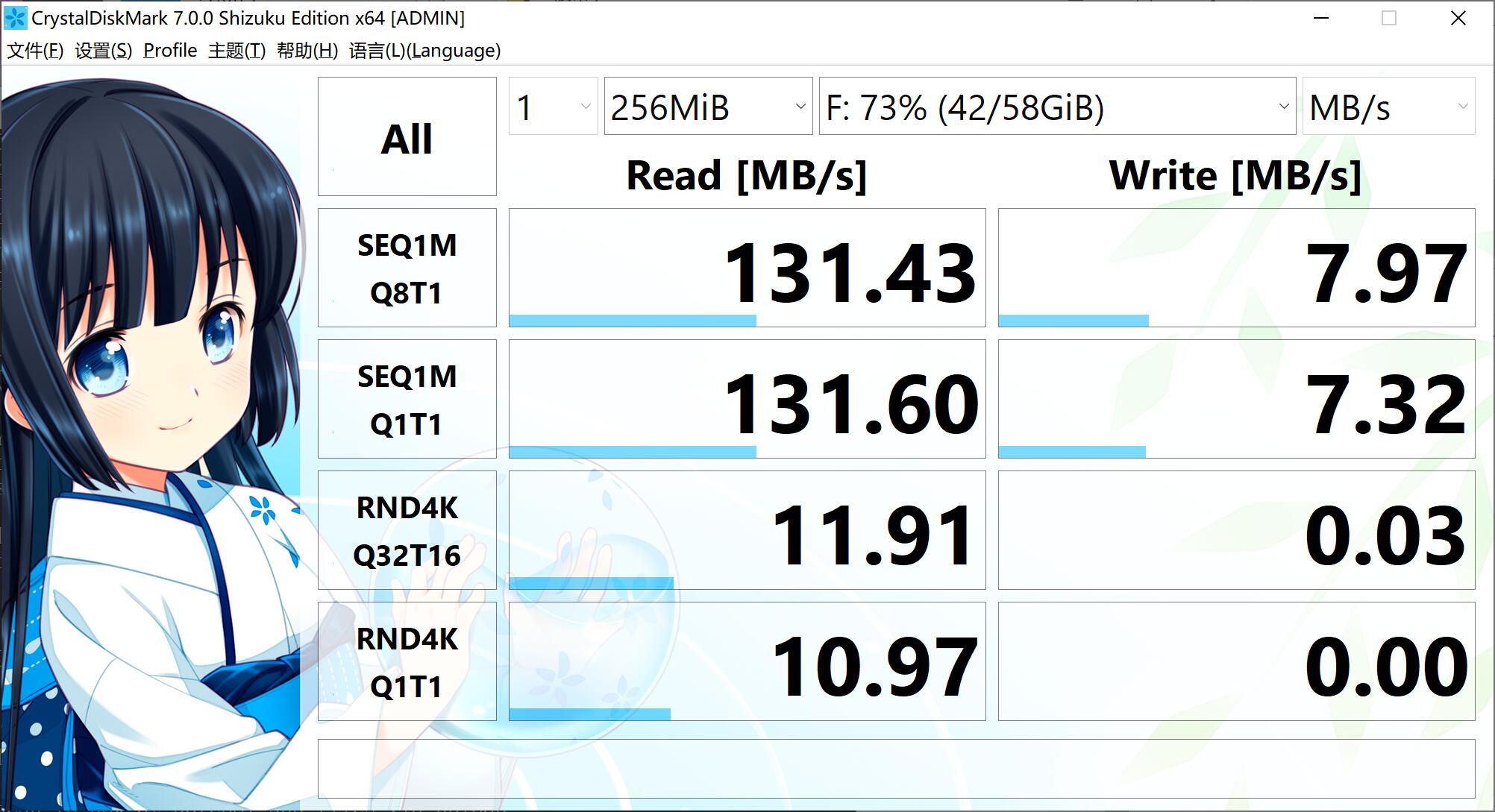

KIOXIA-U301KIOXIA-U301

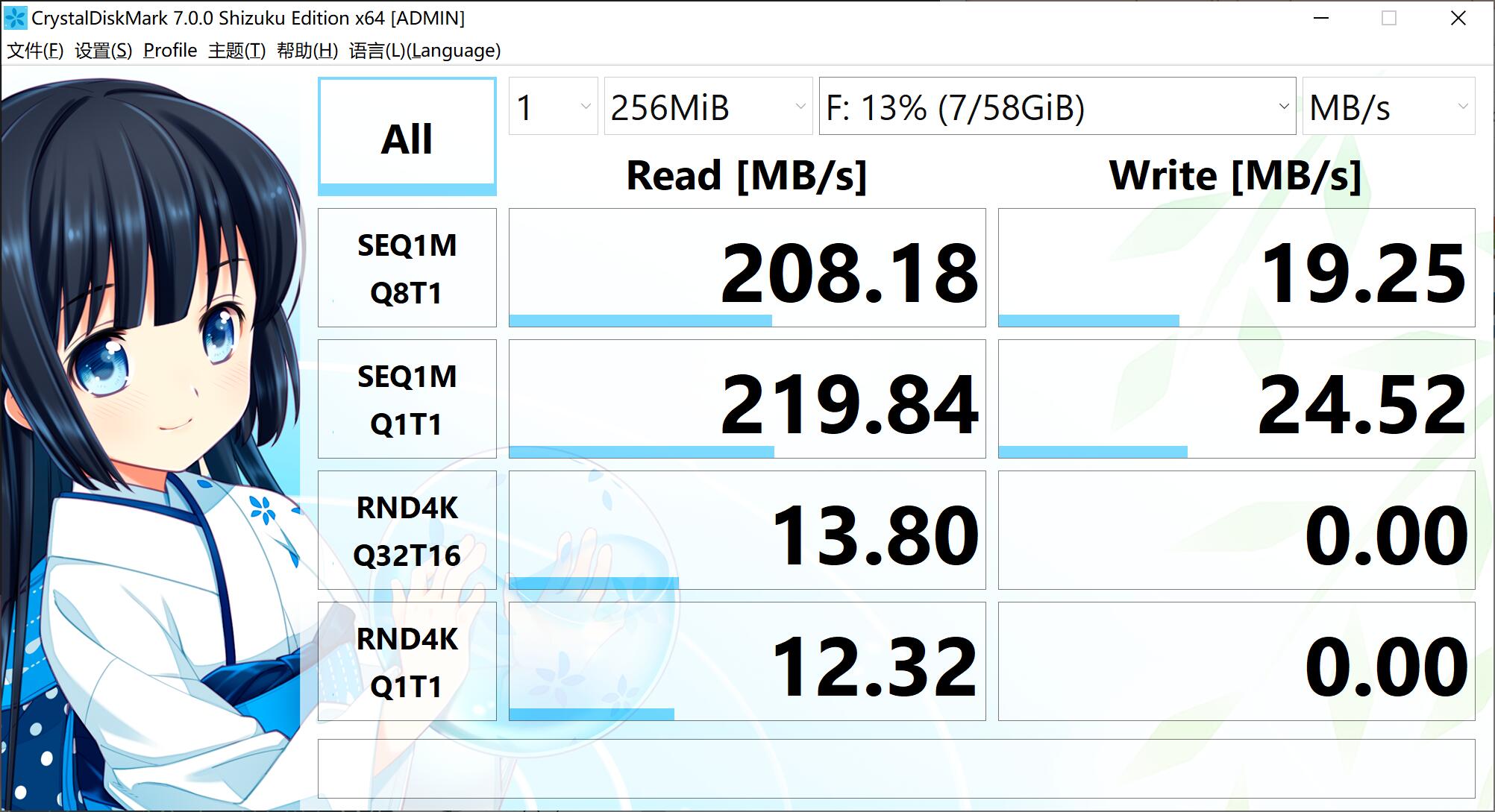

KIOXIA-U365KIOXIA-U365
